Original: $2,849.00
-65%$2,849.00
$997.15The Story

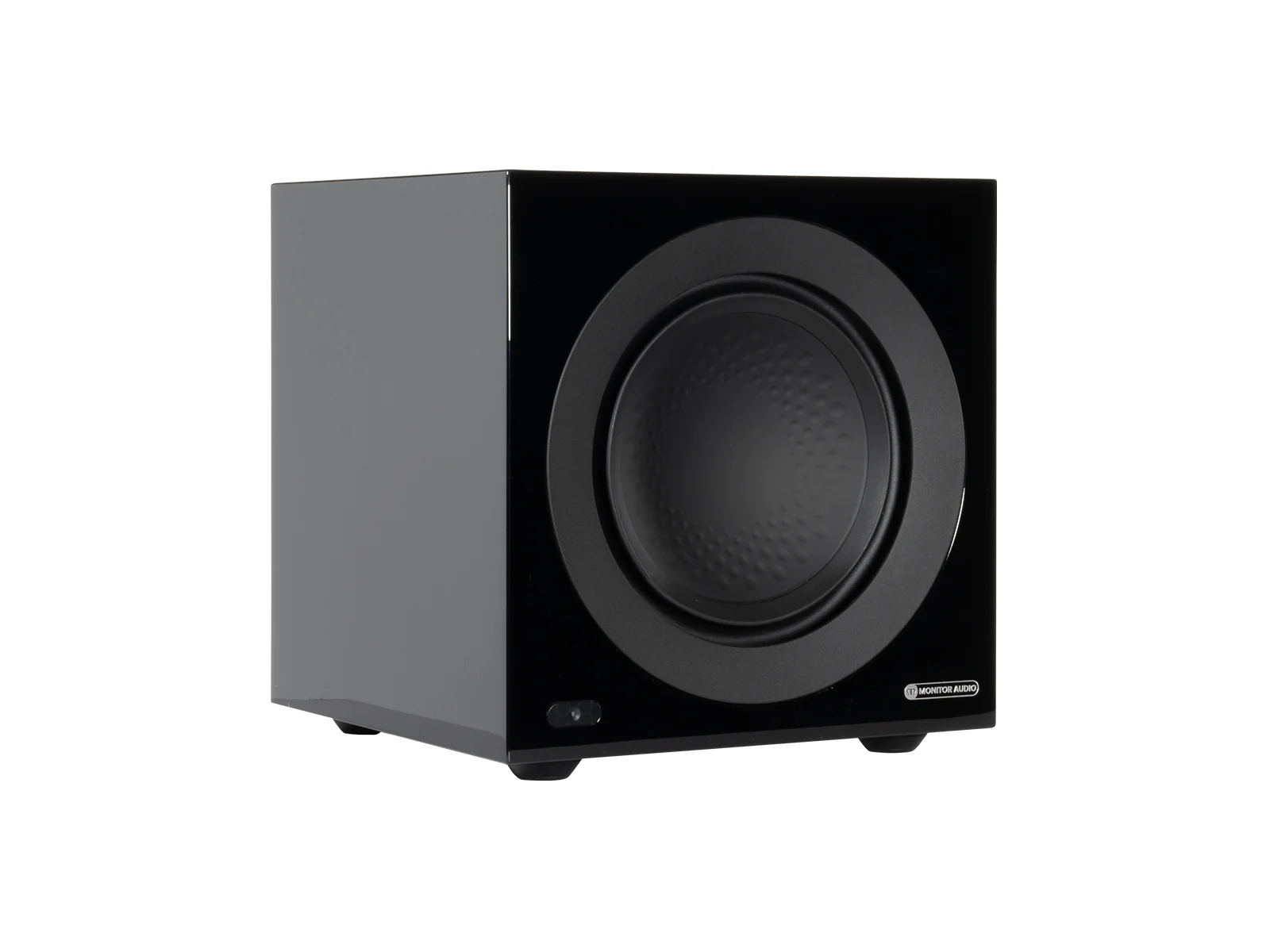

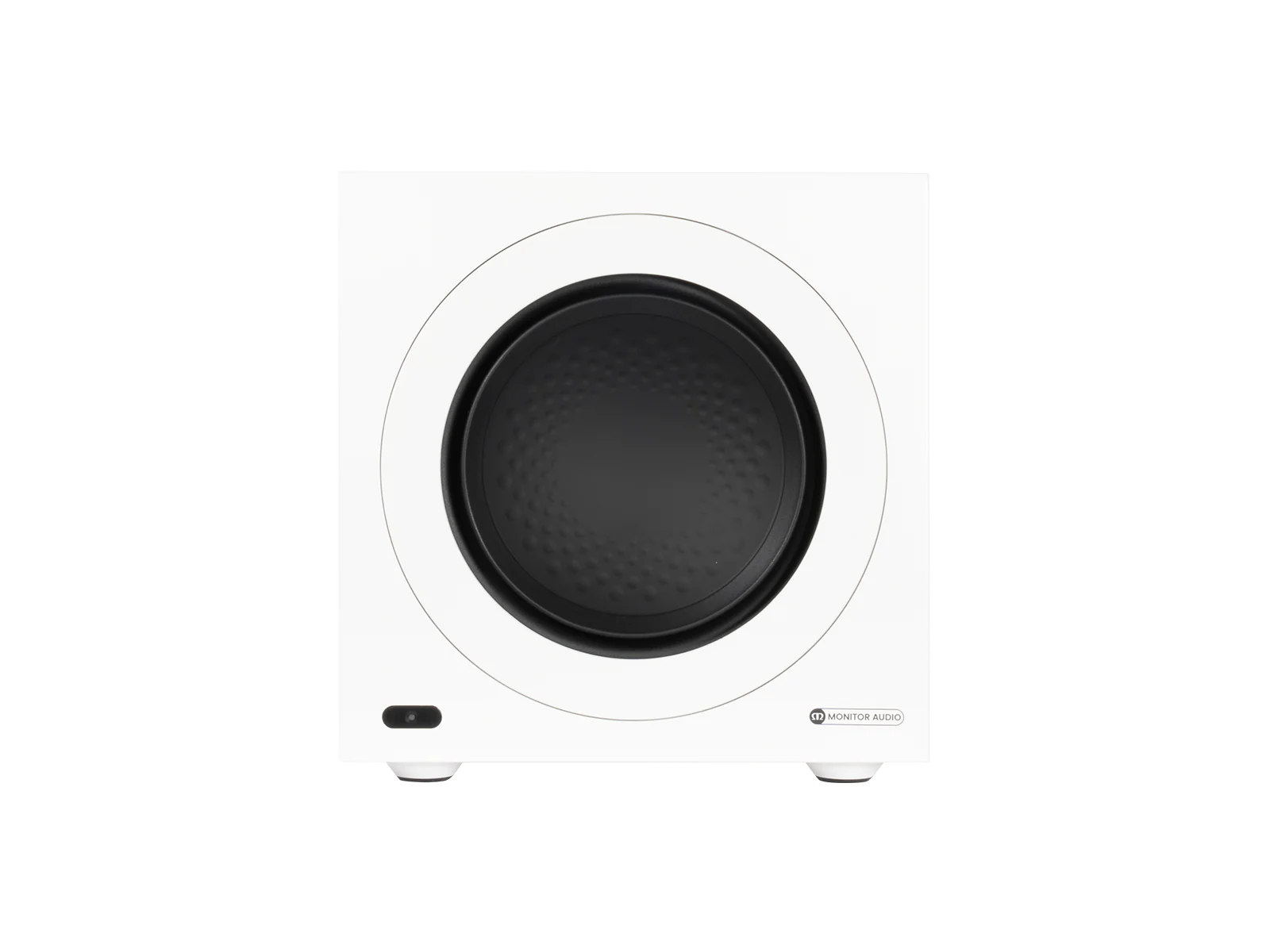

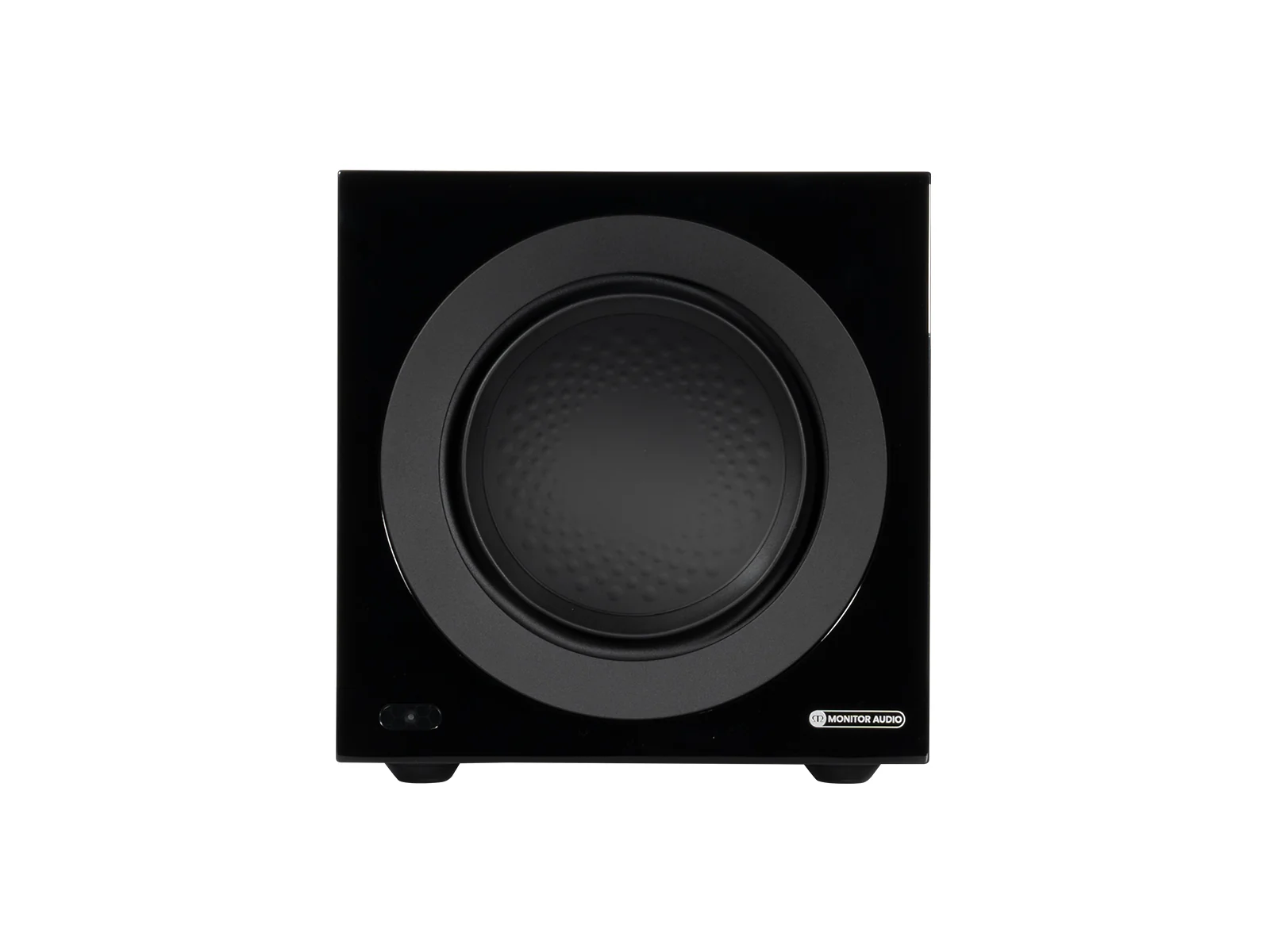

The W10 is the most compact model within the Anthra subwoofer series. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
Engineered to deliver deep, agile bass in small to mid-sized spaces, the Anthra W10 subwoofer features a 500 Watt Class-D amplifier driving a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W10 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

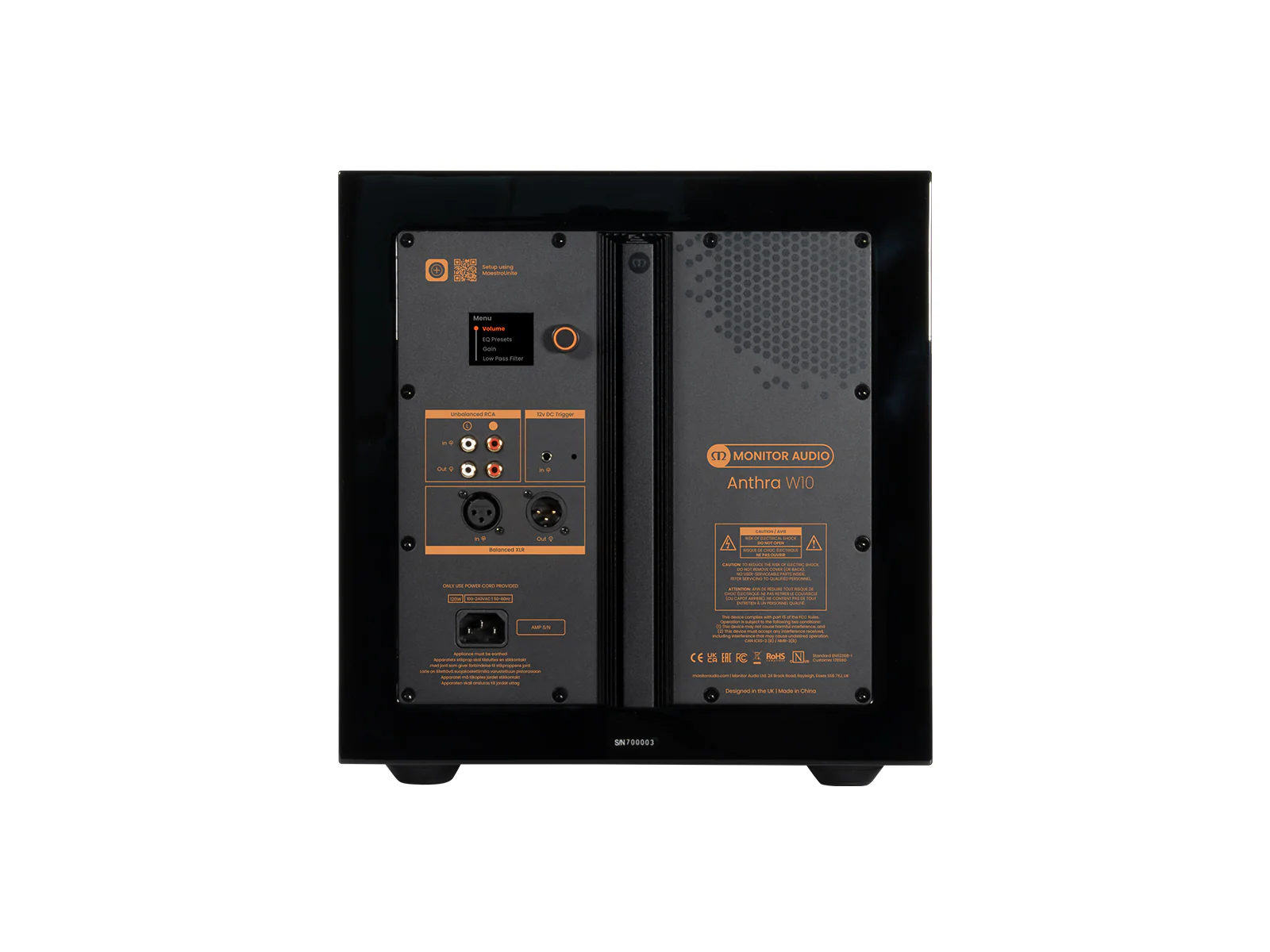

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
SPECS:
System Format
Active – Sealed Cabinet
Drive Unit Complement
1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification
High-Efficiency Class-D
Lower Frequency Limit
-6dB @17Hz
Upper Frequency Limit
(LPF Off) -6dB @400Hz
Driver Excursion (pk-pk)
50 mm
DSP
28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 500 W*
Continuous short-term: 425 W**
Amplifier Output Power, 120Vac
Instantaneous: 450 W
Continuous short-term: 390 W
LED UI Control
Brightness, On-Off
Phase Control
0-360 Degrees measured at LPF Crossover
Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals
Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
Mains Input Voltage
Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD)
321 x 321 x 321 mm
Power Consumption
120 W
Cabinet Construction
Braced 18 mm thick MDF with 36 mm front baffle

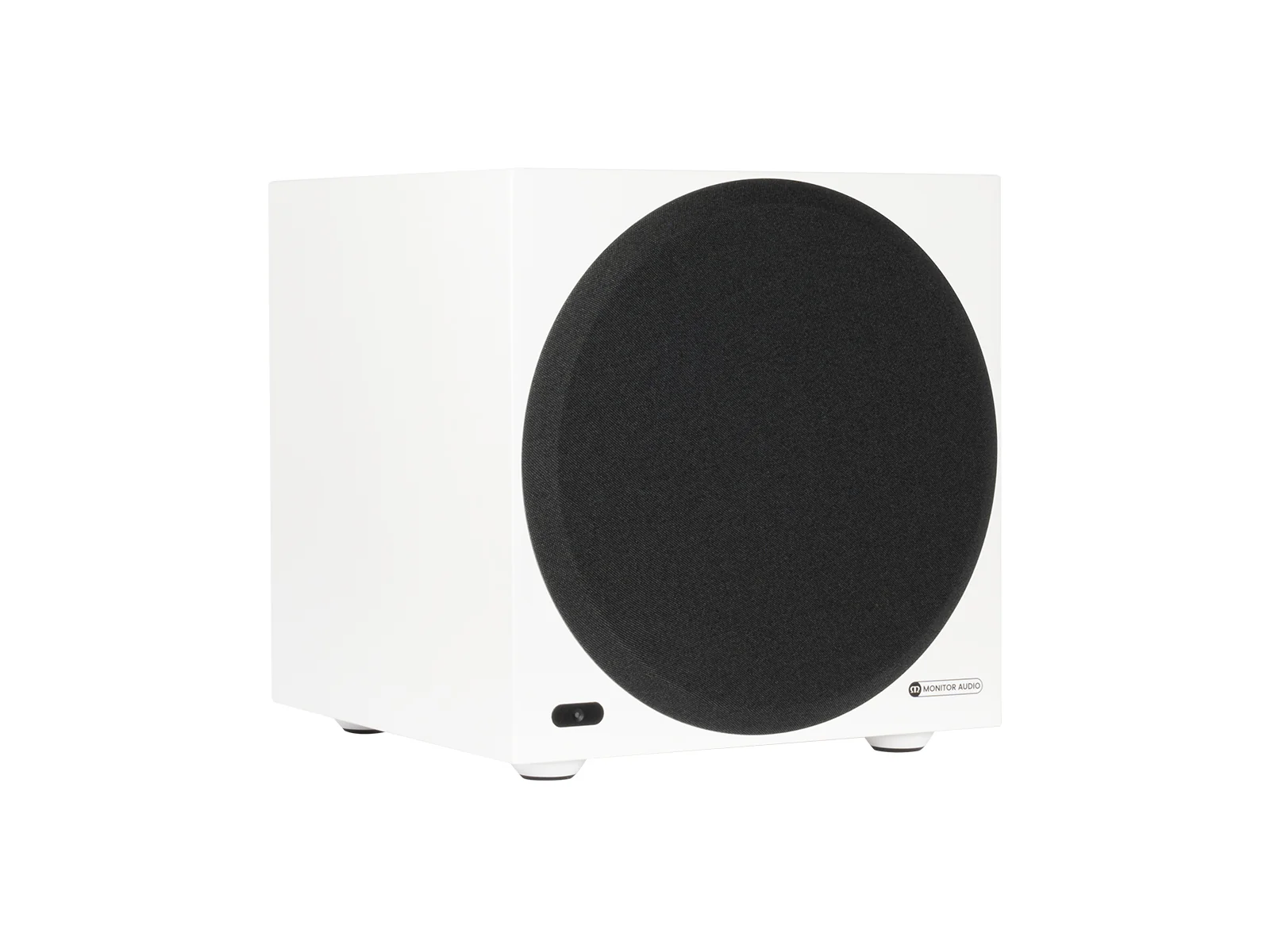

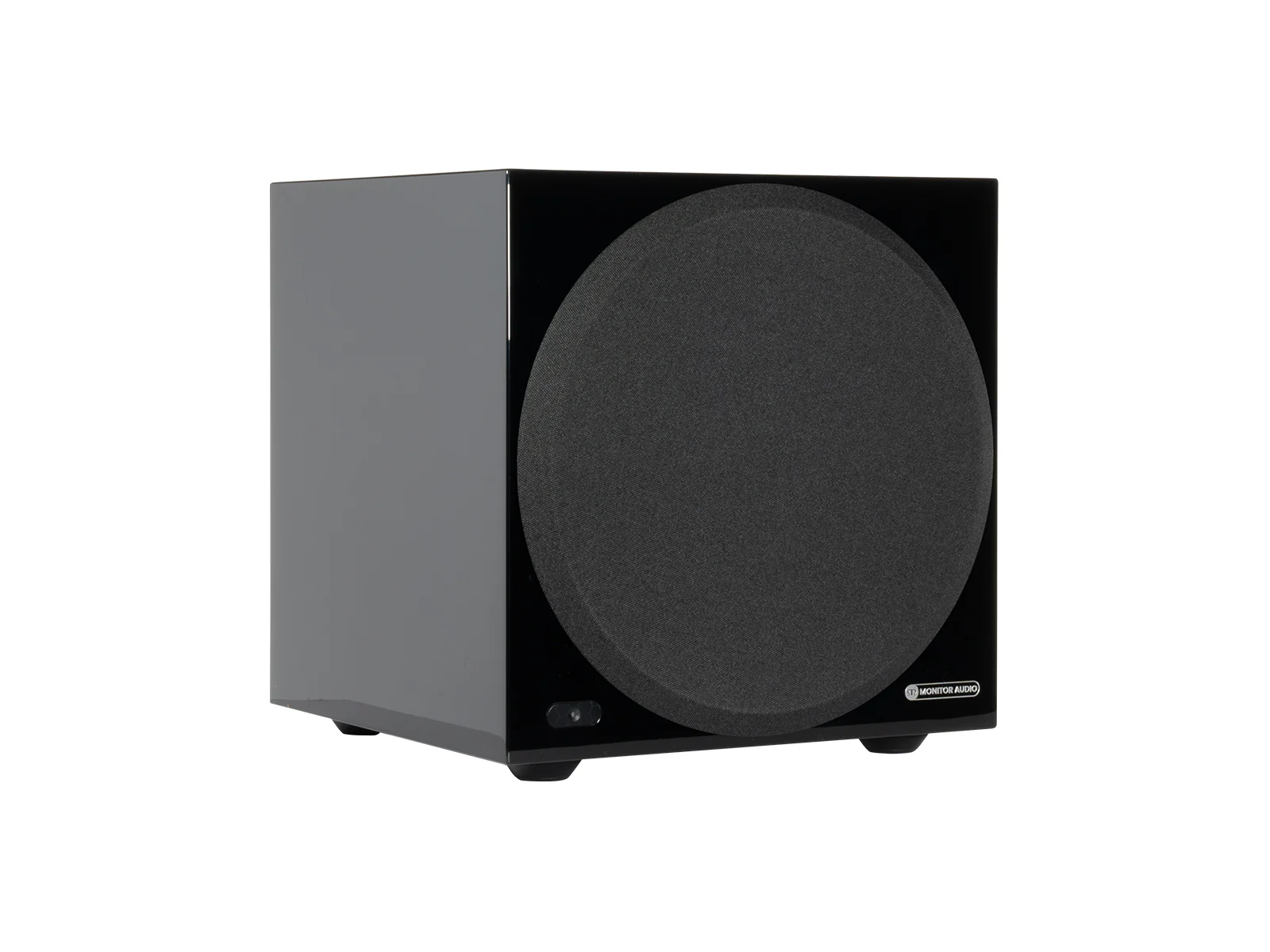

Grille
Cloth covered magnetically attached Grilles
Weight
20.06 kg (44 lb 1 oz)
* Maximum RMS output for an instantaneous signal
